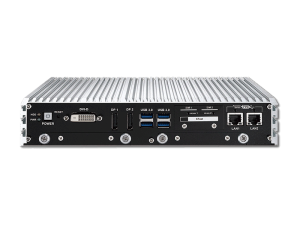

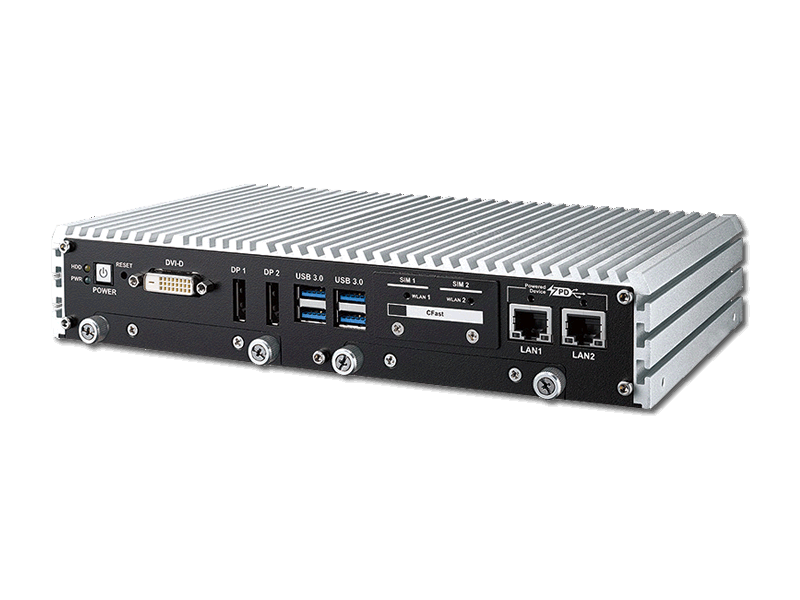

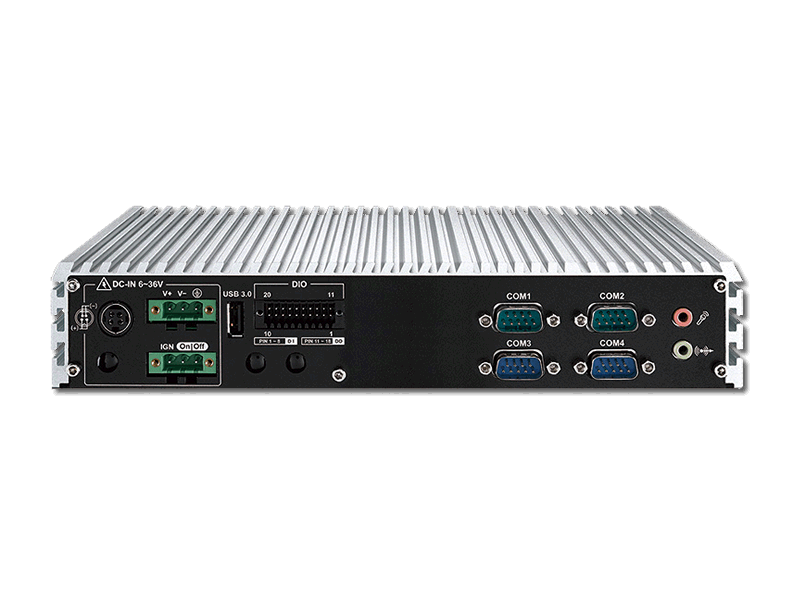

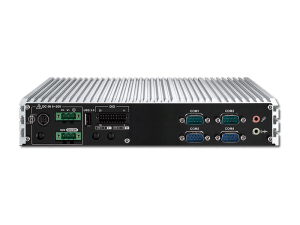

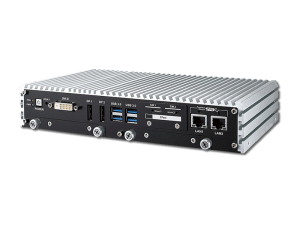

MilAxon 3000 Fanless Embedded Computer
Featured Specifications
- 6th Generation Intel®Core™ i7/ i5/ i3 U-series SoC (Skylake-U)
- 2 Independent GigE LAN, iAMT 11.0 supported
- Slim design, Fanless, -25°C to 70°C Operating Temperature
- DDR4 2133MHz memory, up to 32GB
- DVI-D and Dual DisplayPort display interfaces, up to 4K display
- 2 Mini PCIe support 3G/ 4G/ LTE/ WiFi/GPRS/ UMTS
- 2 External SIM Card Socket
- 5 USB 3.0, 1 CFast Socket, 32 GPIO
- 6V to 36V DC-in with 80V Surge Protection
- Configurable Ignition Power Control
Description
With a powerful 6th Generation Intel Corei CPU, the MilAxon3000 provides outstanding system performance with versatile I/O connections, and wide range power input with surge protection, smart management functions and rugged reliability. The MilAxon is ideal as a standalone workstation, thin-client, or the primary compute component of human-machine interface (HMI) hardware. It is designed to survive in austere tactical and shipboard mission applications, these products provide reliable compute power and customizable I/O in a size, weight, and power (SWaP) conscious package.
With all-in-one integrated features, outstanding system performance, versatile I/O connections, 6 GigE LAN with 4 IEEE 802.3at PoE+, 2 Independent Powered Device (PD) LAN, wide range power input, smart management functions and rugged reliability, Vecow ECS-4500 Series Slim Fanless Embedded System is your great choice for Machine Vision, Smart Manufacturing, Intelligent Transportation System (ITS), Infotainment System, Mobile DVR/NVR, Vehicle Computing, Intelligent Surveillance and any Industry 4.0/ IIOT applications. The MilAxon3000 fanless embedded system delivers consistent power and performance in the harshest of military environments.
Technical Specifications
| Processor | Intel® Core™ i7-6600U/i5-6300U/Celeron® 3955U Processor (Skylake-U) |
| Chipset | Intel® SoC (Skylake) |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2133MHz SO-DIMM, up to 32G |
I/O Interface
| Serial | 4 COM RS-232/422/485 |
| USB 3.0 | 5 USB 3.0 (External) |
| USB 2.0 | 3 USB 2.0 (Internal) |
| GPIO | 16 GPIO |
| LED | Power, HDD, Wireless |
| SIM Card | 2 SIM Card Socket (External) |
Expansion
| MiniPCle | 2 MiniPCIe Socket:
|
Graphics
| Graphics Processor | Intel® HD Graphics 520 |
| Interface |
• DVI-D : Up to 1920 x 1200 @ 60Hz |
Storage
| SATA | 2 SATA III (6Gbps) |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
• 1 CFast Socket, Push-in/Push-out Ejector
• 2 2.5" SSD/HDD Bracket (Internal)
|
Audio
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
Ethernet
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel® I210 GigE LAN |
| LAN 3 (Optional) | 100 Mbs Fiber Optic SFP Intel i210is |
| LAN 4 (Optional) | 100 Mbs Fiber Optic SFP Intel i210is |
Power
| Power Input | 6V to 36V, DC-in |
| Power Interface |
• 3-pin Terminal Block : V+, V-, Frame Ground
• Mini-DIN 4-pin
|
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block : On, Off, IGN |
| Surge Protection | Up to 80V/1ms Transient Power |
| UPS | Supported (Optional) |
Others
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management |
Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Software Support
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
Mechanical
| Dimensions (W x L x H) | 257mm x 141mm x 48mm (10.11" x 5.55" x 1.89") |
| Weight | 2.1 kg (4.6 lb) |
Environment
| Operating Temperature | -25°C to 70°C (-13°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 70°C |
| Shock |
• IEC 60068-2-27
• SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
• IEC 60068-2-64
• SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| Certification | CE, FCC, EN50155, EN50121-3-2 |
