Janus Portable Mission Computer

Click to zoom

Featured Specifications:

Rugged design for harsh environments
Lightweight - only 25 lbs.
PelicanTM brand 1525 Air Case enclosure
2 Hi-Bright LCD displays - 16.7M colors/1000 nits
Quad Core 6th Generation Intel® Xeon™ E3-1505m v5 (Skylake-H)
2 DDR4 2133MHz Memory, up to 64GB
Fanless, -25°C to 70°C Operating Temperature
Ruggedized water-resistant keyboard
Touchscreens optional

The RS-S2H JanusTactical Computer System was designed with direct input from America’s elite warfighters. The system packages the most powerful 6th generation Quad Core^TM Intel® Xeon processors into a rugged, lightweight Peilcan^TM brand 1525 Air Case that is ready to deploy in the harshest operating environments.

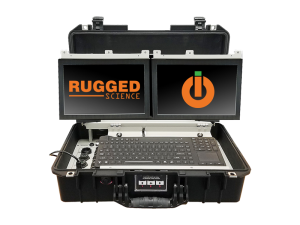

The Janus features two Hi-Bright backlit LCD displays at 1000 nits mounted to an innovative internal armature that isolates shock and vibration, and quickly folds open or closed for rapid transit. The internal PC is a fanless design witn an extra large heat sink for exceptional thermal performance. The Janus is available with up to 64 Gb RAM, and boasts a -25°C to 70°C operating temperature range. In real-world tactical operations, SWAP is always a top concern; at 25 lbs. Cerberus systems are among the lightest and most powerful tactical computer systems available.

Attachment	Size
NAG Janus Technical Data Sheet.pdf	1.52 MB

NAG News

NAG Marine Celebrates Ceremonial First Cut of Steel for the Aircraft Carrier Doris Miller (CVN 81)

Post date: 27 Aug 21

Norfolk, Virginia. (Aug. 25, 2021) – Local company, NAG Marine, celebrated today the ceremonial first cut of steel for t... Read More

NAG Marine Partners with DASPOS International Inc.

Post date: 22 Mar 21

Norfolk, VA February 4, 2021 NAG Marine, Norfolk, Virginia, has partnered with DASPOS International Inc. in it... Read More

Fanless Computing - Here's Why

Post date: 15 May 20

Overview: Everyone recognizes the hum of a computer. The wheels clicking and noises of discs spinning are a fam... Read More

Cybersecurity at the Helm

Post date: 15 May 20

The Current Cyber Environment: A study by the University of Maryland in 2019 showed that a hacking attempt is r... Read More

System
Processor	Intel® Xeon® E3-1505M v5 (Skylake-H)
Chipset	Intel® C236
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz/1866MHz SO-DIMM, up to 64GB

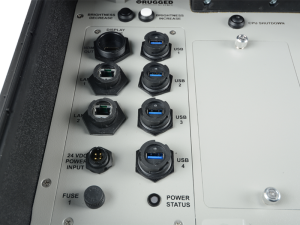

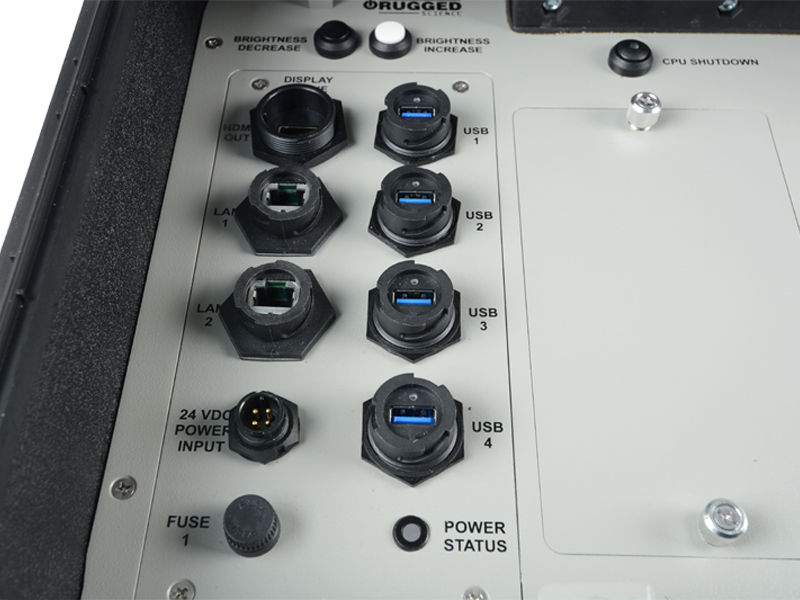

I/O Interface
Serial	4 COM RS-232/422/485
USB	- 6 USB 3.0 (PC External) - 1 USB 2.0 (PC Internal)
Isolated DIO	16 Isolated DIO : 8 DI, 8 DO
LED	Power, HDD
SIM Card	4 sockets - (3 PC external, 1 PC internal)
Expansion
Mini PCIe	4 Mini PCIe Socket : - 3 Full-size for PCIe/USB/External SIM Card/mSATA - 1 Full-size for PCIe/Internal SIM Card/mSATA
PCI/PCIe	1 PCI/PCIe x16 Slot
SUMIT A, B	2 slots (optional)
Graphics
GPU	Intel® HD Graphics P530
Interface	Up to 8 Display interfaces: DVI-I: 1920 x 1200 @ 60Hz Display Port 1: 4096 x 2304 @ 60HZ Display Port 2: 4096 x 2304 @ 60HZ
Storage
SATA	4 SATA III support S/W RAID 0, 1, 5, 10 - 3 SATA III (6GBps) - 1 SATA III co-lay w /Mini PCIe (6GBps)
mSATA	4 mSATA connection: - 3 SATA III (Mini PCIe Type, 6GBps) - 1 SATA III co-lay w /SATA (Mini PCIe Type, 6GBps)
Storage Device	4 2.5" SSD, 1TB ea., RAID 1 configuration
Audio
Codec	Realtek ALC892, 5.1 Channel HD Audio
Interface	1 Mic-in, 1 Line-out
Ethernet
LAN 1	Intel® I219LM gigabit LAN (supports iAMT 11.0)
LAN 2	Intel® I210 Gigabit LAN
Power
Battery Power	2x 12V LiFePo, 7.5 Ah
AC/DC Input	6-36V, DC-in, 12V auto adapter and 120V AC adapter available
Interface	3-pin Terminal Block: V+, V-, Frame Ground
Remote Switch	3-pin Terminal Block
Ignition Control	16 mode (internal)
Surge Protection	Up to 80V/1ms Transient Power
Processor Performance
No. of Cores	4
No. of Threads	8
Base Frequency	2.80 GHz
Max Frequency	3.50 GHz
Cache	8 MB Smart Cache
Bus Speed	8 GT/s DMI3
TDP	45 W
Software Support
OS	Windows 10, Windows 8.1, Windows 7, Linux
Other
TPM	Optional Infineon SLB9665 supports TPM 2.0, LPC
Watchdog Timer	Reset: 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Temp. & Voltage - Auto throttle on CPU overheat
Mechanical
Dimensions	21 x 13 x 7 (LxWxH - Inches)
Weight	25 lbs.
Carrying Case
Model	Pelican 1525 Air
Construction	Proprietary HPX² Polymer
Other	Air Pressure Purge Valve
Environmentals
Operating Temperature	-25°C to 70°C (-13°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Shock	Designed to Meet: MIL-STD-810
Vibration	Designed to Meet: MIL-STD-810
EMC	Designed to Meet: MIL-STD-461
Displays
Description	13.3” Wide TFT LCD, LED Backlit 1000nits, WXGA
Display Area (mm)	286.08 x 178.8
Brightness	1000 cd/m²
Resolution	1280 x 800 (WXGA)
Contrast Ratio	800:1
Pixel Pitch (mm)	0.2235(H) x 0.2235(V)
Viewing Angle	+70°~ 70°(H), +60°~ 60°(V)
Colors	16.2M
Response Time	16ms
Power Consumption	7.5W
Dimensions (mm)	299 x 195 x 7.7 (each)
Weight	752g (each)
