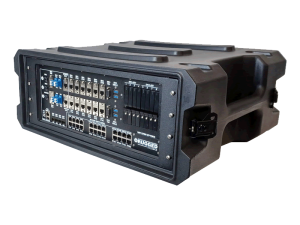

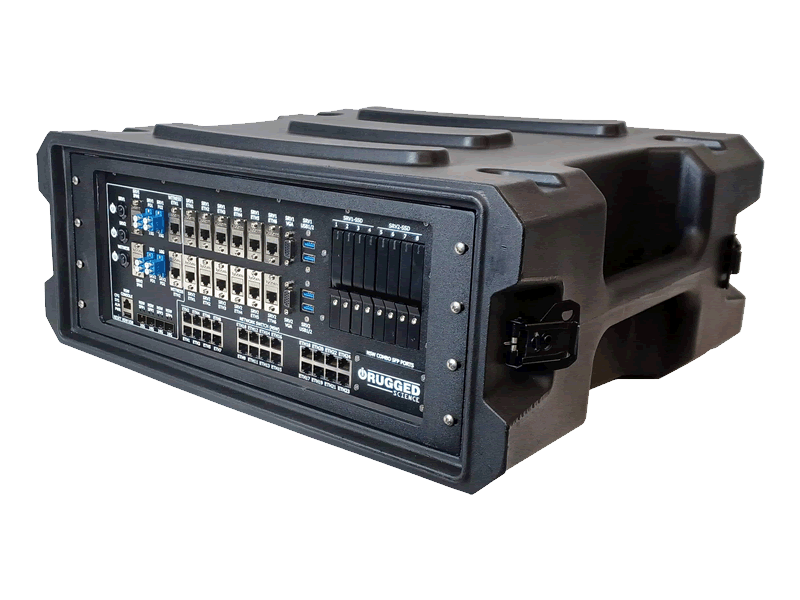

Designed to bring cloud capabilities to a tactical environment, the Command Post Tactical Operations Server is a cost-effective, portable data cluster optimized to provide a VM Ware Software Defined Network directly to the warfighter. What used to take 750 lbs of high cost hardware can now be accomplished cost effectively within a 56-lb transit case.
The Command Post Tactical Operations Server features 2 fully redundant internal servers powered by 16-Core Intel Xeon-D 1587 CPU with IPMI. Each server is equipped with 2x 10G ports and with 6x 10/100/1000 Mbs ports for high interconnectivity. The Command Post TacOps Server has a fully integrated Layer 3 Network Switch with 4x 10G SFP ports, 24x 10/100/1000Mbs Ethernet ports, and 8x SFP 100/1000 Mbs Combo Fiber ports.
Technical Specifications:
System & Motherboard
Servers
2x Embedded Server Motherboards
Witness Appliance
1x MilSynapse Witness Appliance
Server Processor
Intel 16-Core Xeon D-1587
Witness Appliance Processor
Intel Dual Core Skylake Series-U CPU
Memory
Up to 128GB perserver (258GB total)
16GB Witness Appliance
External Input /Output
IPMI
1x 10/100/1000MBS IPMI port per server
10G Ethernet
Each server equipped with 2x 10G Fiber Ethernet
Network Switch equipped with 4x 10G SFP
1G Ethernet
Each Server equipped with 6x 10/100/1000 Mbs RJ45 Copper
Witness Appliance equipped with 2x 10/100/1000 Mbs Copper
Switch equipped with 24x 10/100/1000 RJ45 Copper Ethernet
Switch equipped with Combo 8x optional SFP 100/1000 Mbs
