Allows for use in almost any liquid level application
Operates in high temperatures, up to 482 degrees Fahrenheit
Durable with a variety of materials, which results in reliable measurements in the most arduous process conditions
Mechanically fastened crystals ensure a rugged and effective Piezo Drive

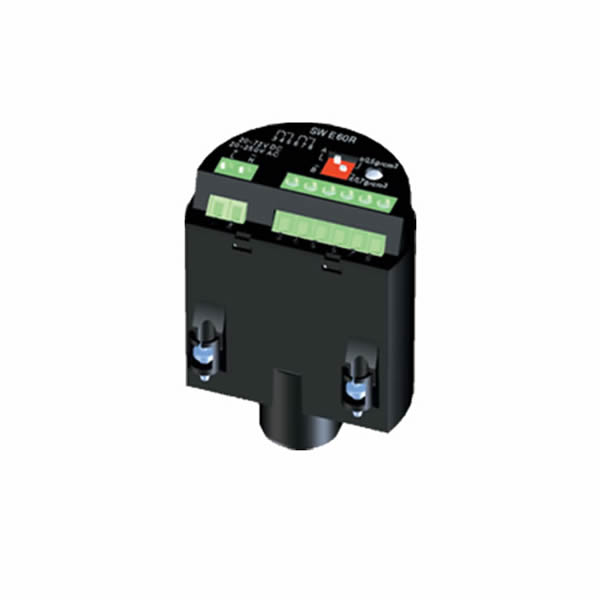

Fully modular PLICS® design with plug-in electronics can be easily changed to provide different output signals, making installation and wiring a breeze
Variety of available outputs meets all needs for input
into many control systems
Two-wire, loop-powered option affords the most
cost-effective wiring solution

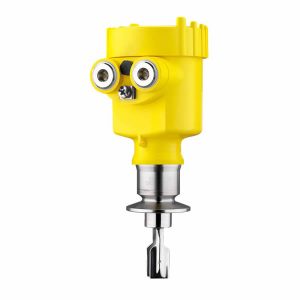

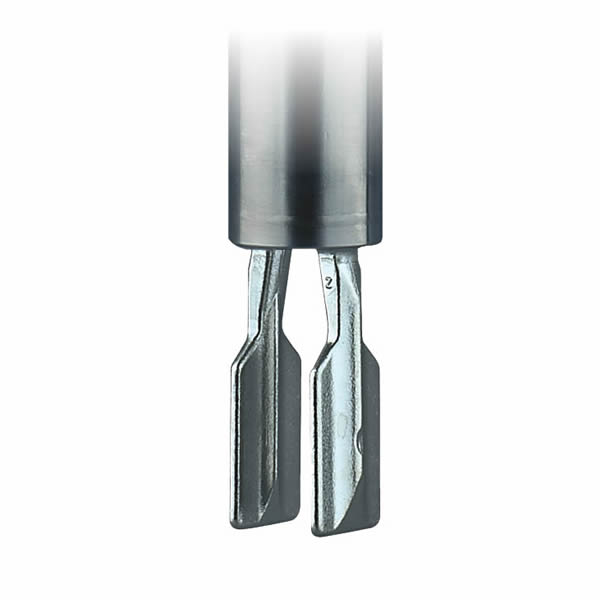

Point Level Switching TLI Operating on a principle of Piezo vibration, the VEGASWING vibrates the fork at the end of the sensor. When the fork is covered by product, the frequency of the forks vibration changes. The VEGASWING 61 detects this change and triggers a switching command. In order to prevent overfilling of the ballast tanks, the pumps or blowers have to be switched off quickly. The VEGASWING 61 vibrating level switch is a wear-and maintenance-free sensor and is the ideal solution for adjustment-free level detection in the ballast tanks. The VEGASWING 61 can also be used where high or low level detection of liquids is required, including such applications as towers, sumps, tanks and pipes.
Technical Specifications:
Technical Data
Process Pressure
-1 to +64 bar / -100 to +6400 kPa (-14.5 to +928 psig)
The function of the instrument is ensured up to an operating pressure of 100 bar/10000 kPa (1450 psig) at a maximum process temperature of +50 °C (+122 °F) (only with threaded versions).
Process Temperature
-50 to +250 °C (-58 to +482 °F)
Viscosity - dynamic
0.1 to 10000 mPa s
Density
0.7 to 2.5 g/cm³ (0.025 to 0.09 lbs/in³)
0.5 to 2.5 g/cm³ (0.018 to 0.09 lbs/in³) by switching over
Ambient Temperature
40 to +70 °C (-40 to +158 °F)
Hysteresis
approx. 2 mm (0.08 in) with vertical installation
Process Fitting
Threads from G¾, ¾ NPT, flanges from DN 25, 1”, hygienic fittings
