(Discontinued - Service Only)

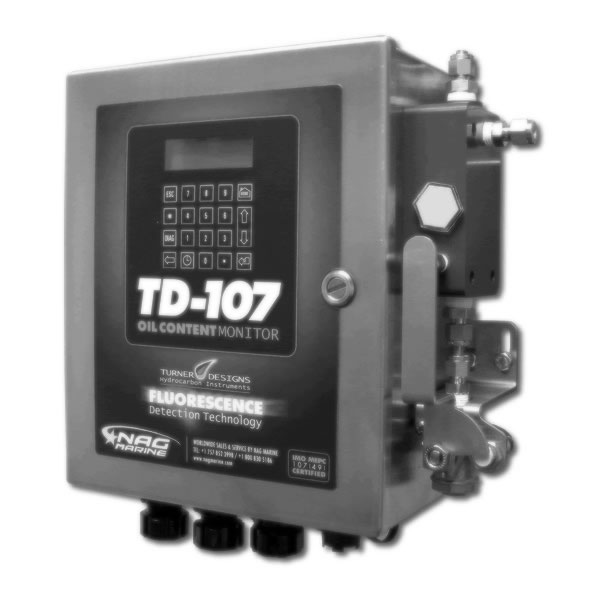

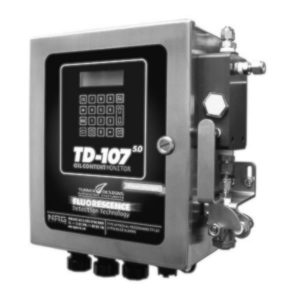

The TD-107 Fluorescence Oil Content Monitor (OCM) is a 15 ppm bilge alarm for oily water separators based on fluorescence detection technology. Fluorescence makes the TD-107 resistant to interferences by turbidity or particles and sediments in the bilge which impact competing "light scatter" oil content monitors. Because silt, algae, iron oxide and other particles do not fluoresce at oil's same wavelength, they cannot interfere as a 'false positive' high alarm that will keep the oily water separator in recirculation mode without ever pumping down the oily waste holding tanks.

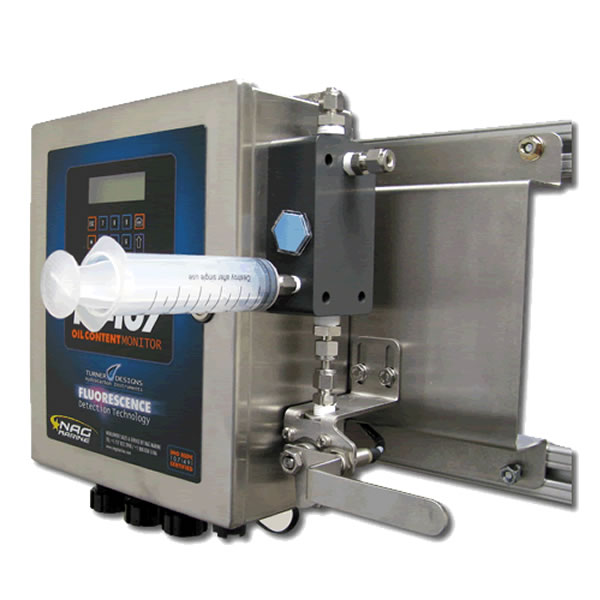

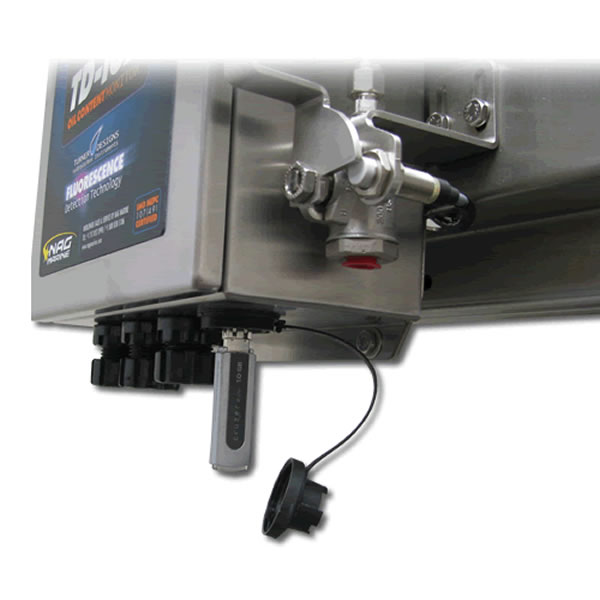

The TD-107 Oil Content Monitor is IMO MEPC 107(49) certified and approved by the USCG for use as a 15 or 5 ppm bilge monitor / bilge alarm, with detection capability up to the parts per billion level. It comes equipped with required data logger and can be customized to show system trends. The oil content monitor features self-compensating electronics that correct for fouling of the sample cell, along with a cell condition monitor to alert crew when sample cell cleaning is required. The TD-107 Fluorescence Oil Content Monitor includes standard alarm relays and 4-20mA output for remote monitoring, along with user-friendly USB data port for review of recorded oil content monitor / oily water separator discharge levels over time. The TD-107 Oil Content Monitor is essential for staying in compliance with IMO MEPC 107(49).
